Nevada SWAT+ modeling

Moores Station Springs (USGS 10246940), in the Hot Creek-Railroad Valleys basin: documented SWAT+ USGS station model snapshot with Explorer-aligned maps.

Nevada model packages · All states · Watershed Explorer

Case study basin: Hot Creek-Railroad Valleys

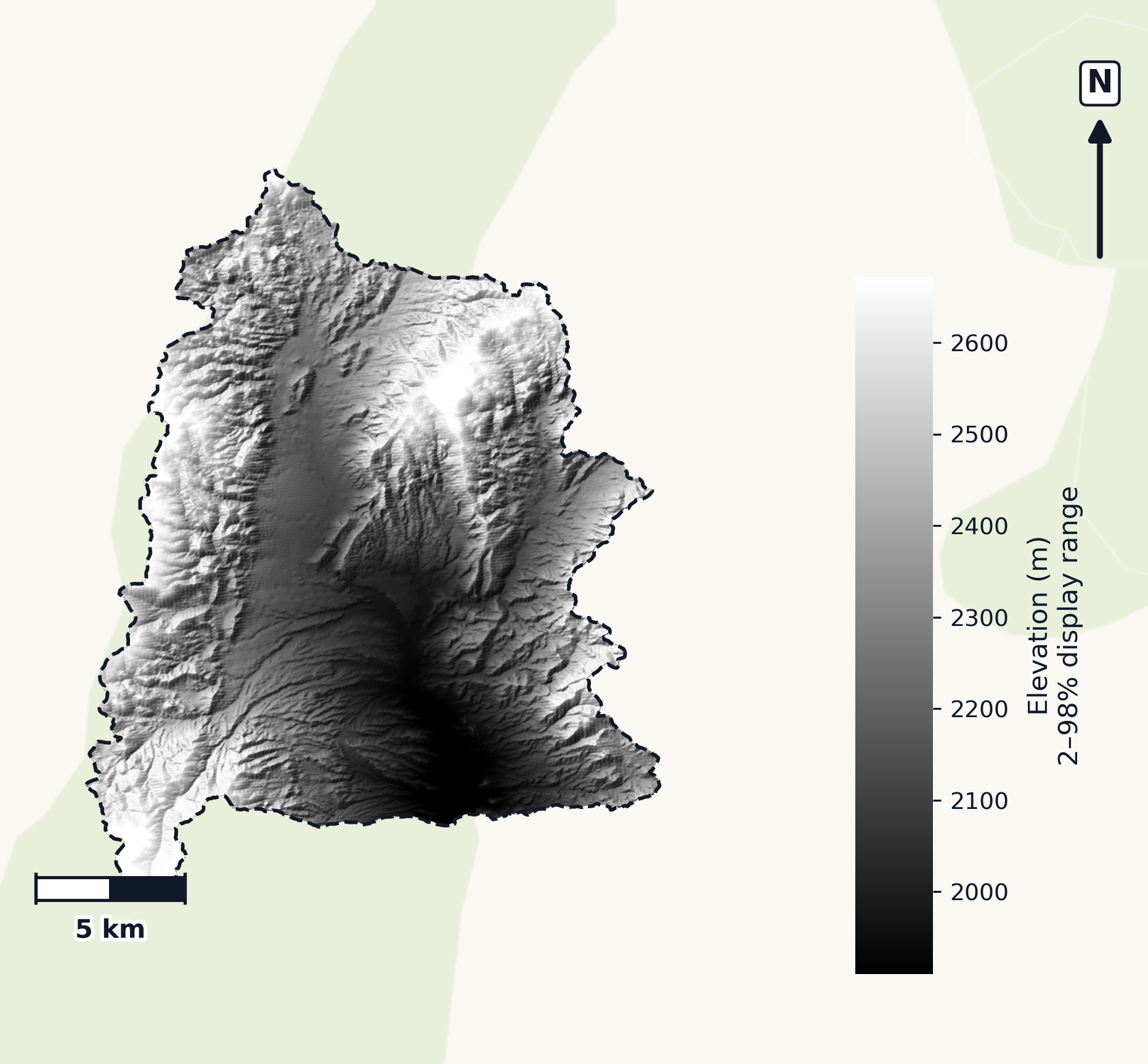

DEM terrain shading
Hot Creek-Railroad Valleys · Nevada — DEM hillshade, basin mask (same layout as flood-report maps)

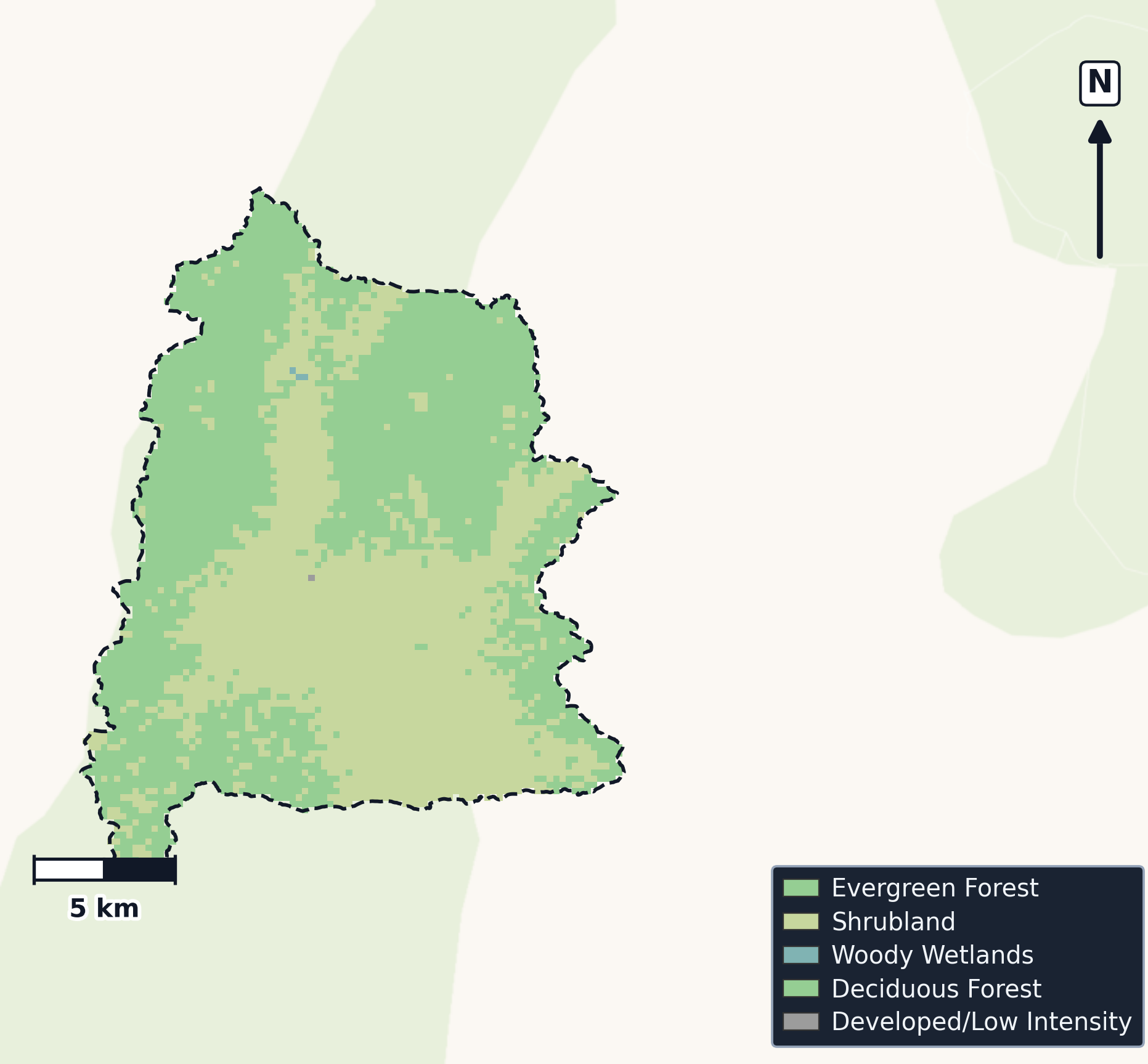

USDA CDL land use
Hot Creek-Railroad Valleys · Nevada — Cropland Data Layer land use, basin clip

Below is a documented SWAT+ model-build snapshot for the Hot Creek-Railroad Valleys watershed—the same export class as Watershed Explorer. The metric strip, maps, charts, NHD flowline-length summary by feature class, and fact tables follow from that committed export.

392.3 km²
Model domain
352.2 km²
USGS-reported drainage area
3,046
HRUs
378
Channels
1
Lakes / reservoirs (GIS)
568.1 km
NHD-linked stream length
37
Weather grid cells (4 km) used by the model

The metric strip, fact tables, and optional DEM/CDL maps describe the exported SWAT+ workspace for Hot Creek-Railroad Valleys (HUC8 16060012). NHD-linked stream statistics and PRISM climate headers follow the same conventions as other SWATGenX state sample models across CONUS.

Counties in the basin overlay: Nye.

  • Runoff timing and climate variability across multi-year forcing
  • Channel routing and NHDPlus HR hydrography linkage
  • Land cover and HRU discretization for management screening
  • Reproducible SWAT+ package delivery via SWATGenX

Basin distributions (Hot Creek-Railroad Valleys · Nevada)

CDL charts use the same basin-clipped raster summary as Explorer watershed reports. County population bars use US Census county-or-equivalent polygons only (not state, city, or township layers): one published headcount per county that intersects the basin, then summed for screening—not watershed-apportioned density.

CDL land cover (basin clip)

Population by county (overlay)

Land-cover mix (km², CDL clip)

Climate forcing (Hot Creek-Railroad Valleys · Nevada)

Monthly climatology from basin PRISM precipitation and temperature, and NSRDB humidity and solar radiation files. The line is the mean daily value for each calendar month (averaged across all station files and years); the shaded band is the P05–P95 spread of those daily values (2000-01-01 – 2024-12-31). 37 weather grid cells (4 km) used by the model: PRISM precipitation and temperature, NSRDB humidity, solar radiation and wind.

Precipitation
mm day⁻¹ (PRISM)
Relative humidity
% (NSRDB)
Solar radiation
MJ m⁻² day⁻¹ (NSRDB)
Daily maximum temperature
°C max (PRISM)
Daily minimum temperature
°C min (PRISM)

Key facts

The first table lists basin id, climate window, CDL and population context, and the two published stream-length definitions (channel routing versus NHD-linked stream GIS). The strip above still carries headline structure counts (HRUs, channels, lakes).

MetricValue
WBD HU8 nameHot Creek-Railroad Valleys
USGS gauge10246940
WBD region (VPUID)1606
Model domain392.34 km²
USGS-reported drainage area (NWIS site record)352.24 km²
SWAT+ stream GIS segments (NHDPlusID → NHDFlowline)379
Stream length — channel routing (rivs1, projected)567.67 km
NHD-linked stream length, GIS projected568.12 km
DEM resolution (m)30.02
CDL cropland (basin clip)0.00 km²
CDL wetland (Woody + Herbaceous)0.31 km²
CDL developed0.06 km²
Population (by county, Explorer overlay)51,591
Counties (gov. units)1
Climate period (PRISM header)2000-01-01 – 2024-12-31
Stats exported (UTC)2026-10-15 22:29 UTC
Structure counts refreshed (UTC)2026-10-15 22:36 UTC
SWATGenX snapshot ID1606/usgs_station/10246940
Snapshot labelHot Creek-Railroad Valleys (Nevada) — usgs_station
Model statistics generated (UTC)2026-10-15T22:29:53Z

How to read this table: each row starts from Watershed/Shapes/SWAT_plus_streams.shp, where each segment carries NHDPlusID. Those IDs join to NHDFlowline in the USGS NHDPlus HR HU4 geodatabase (VPUID 1606). Lengths add in EPSG:5070 (planimetric km) and roll up by NHD FType / FCode. Row lengths sum to 568.12 km over 379 segments.

NHD class (label)Length (km)ShareSegments
Stream / river (FCode 46007)FType 460 · FCode 46007535.294.2%330
Stream / river (intermittent)FType 460 · FCode 4600326.624.7%39
Stream / river (perennial / general)FType 460 · FCode 460065.741%8
Artificial path (NHD)FType 558 · FCode 558000.450.1%1
ConnectorFType 334 · FCode 334000.110%1

The county total matches the bar chart: county-or-equivalent units only (cities and townships excluded), one Census headcount per county intersecting the basin. Screening context only—not basin density or a regulatory design population.

Documented SWATGenX SWAT+ package for Nevada (1606/usgs_station/10246940). Screening and documentation only—not a regulatory determination.

What SWATGenX generates

SWATGenX assembles national inputs, runs the QSWAT+ / SWAT+ Editor workflow, and exports a reviewable SWAT+ workspace (TxtInOut + GIS + SQLite). Open the package in SWAT+ Editor for scenarios; add calibration and validation with local data where your study requires it.

National datasets (labels)

NHDPlus-HR
PRISM
NLCD
gSSURGO
DEM
USGS NWIS

This sample build uses NHDPlus HR at 1:24k, 30 m terrain (from 10 m 3DEP), 250 m NLCD land use (from 30 m), 250 m gSSURGO soils (from 30 m), ~4 km PRISM weather, and daily NSRDB values at the same 4 km grid cells (from ~4 km, 30-minute data). See SWAT+ model packages by state for the full stack. Methodology & provenance.

Citations for on-page facts

  • Hydrologic catalog: USGS WBD — USGS station 10246940 (HUC12-located SWAT+ model)
  • Hydrography: USGS NHDPlus HR — each SWAT+ stream segment (``NHDPlusID``) joined to HU4 ``NHDFlowline`` (FType/FCode); lengths summed in EPSG:5070 for the distribution table.
  • Land cover (CDL): USDA NASS Cropland Data Layer (clipped to basin)
  • Climate forcing: PRISM Climate Group (OSU), daily met files referenced in weather-sta.cli
  • Regional population context: USGS Census county-or-equivalent polygons (GU_CountyOrEquivalent) clipped to the basin — one headcount per county, summed for screening (not basin-apportioned density; cities and townships excluded).

SWAT+ in Nevada — common questions

  • How do I run SWAT+ in Nevada? Use SWATGenX to screen basins in Nevada on the Watershed Explorer map, then queue a SWAT+ model build for a USGS gage, catalog HUC12, or HUC8. The platform assembles national datasets into a SWAT+ Editor package without manual QSWAT+ desktop prep for each basin. The sample model on this page is the Moores Station Springs watershed above USGS 10246940, in the Hot Creek-Railroad Valleys basin.
  • What is the difference between SWAT and SWAT+ in Nevada? SWAT (legacy) and SWAT+ (current process-based watershed model) both support long-term hydrology and water-quality studies in Nevada. SWATGenX targets SWAT+ and delivers reproducible, high-resolution projects on NHDPlus HR hydrography.
  • Can SWATGenX build SWAT+ models for Nevada watersheds? Yes. SWATGenX covers CONUS, including Nevada, with the same national data stack (WBD, NHDPlus HR, PRISM, NLCD, gSSURGO). Each state page documents a sample basin snapshot from a real SWATGenX build; open the live map at https://www.swatgenx.com/watershed-workspace to model your own watershed.
  • How do I get a SWAT+ model for Nevada on SWATGenX, and what does it cost? Agencies ask us for a study of a watershed in Nevada, quoted for that watershed: request a proposal at https://www.swatgenx.com/work-with-us. Research groups that build SWAT+ models for Nevada themselves work with us by invitation: request access at https://www.swatgenx.com/signup.

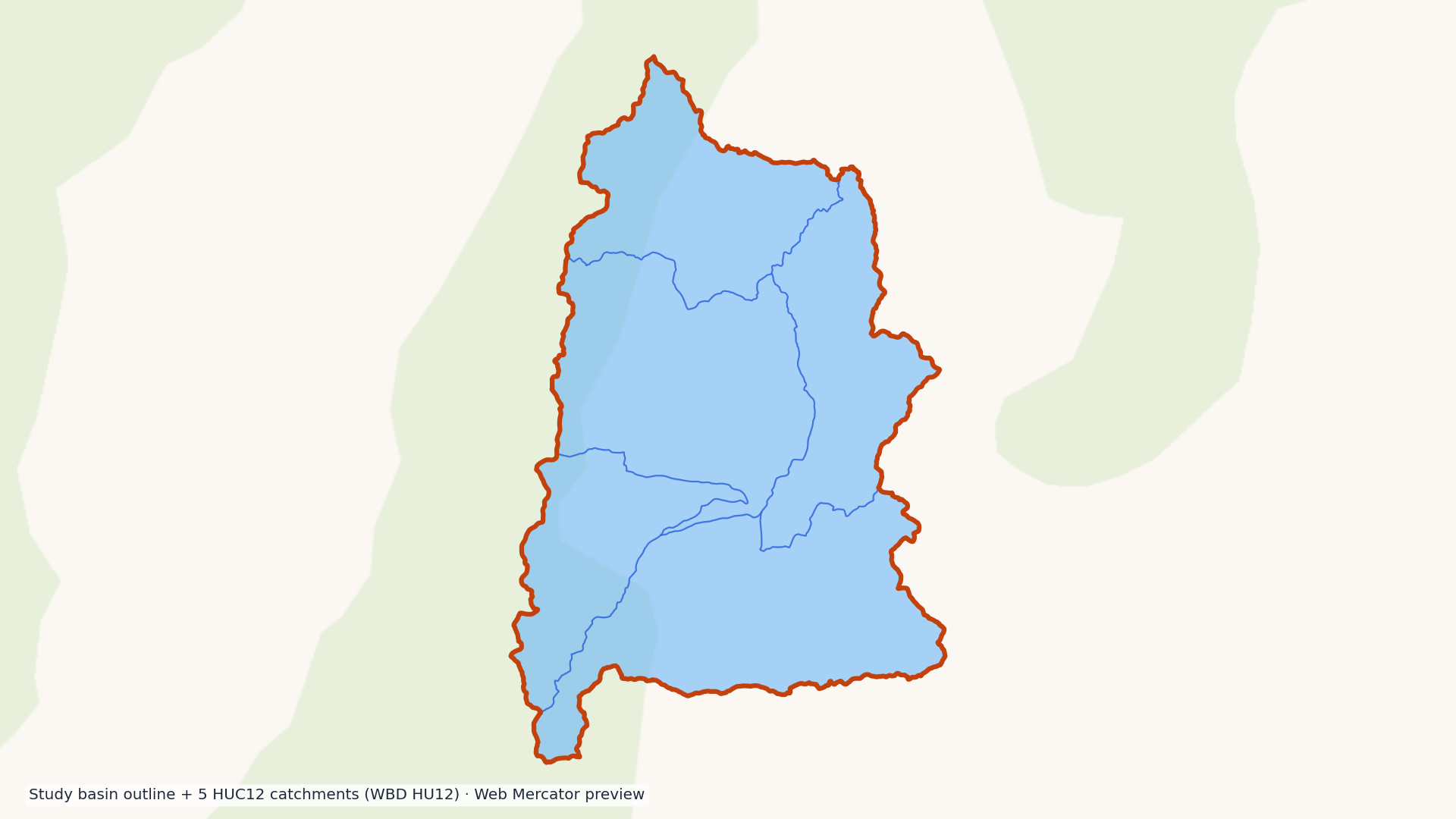

Open Hot Creek-Railroad Valleys in Watershed Explorer

Preview uses the USGS WBD boundary with NHDPlus HR context, zoomed to basin extent on a Streets-style basemap. Follow the card into the live workspace (HUC8 16060012).
