The question

Every SWAT+ model begins by carving a watershed into channels, subbasins, and landscape units. SWATGenX does this by conditioning on NHDPlus HR — the surveyed national hydrography — rather than by the conventional route of accumulating flow over a bare DEM until an area threshold is crossed (threshold delineation, e.g. TauDEM). The high-resolution route is more involved, so the fair question is whether it is worth it, or whether standard DEM-threshold delineation would be simpler and just as good. The answer decides something concrete: whether the model is built on the real, surveyed stream network, or on a plausible reconstruction of it.

We answer it empirically — first on the Oklawaha S · HUC-12 030801020804 (VPUID 0308) reference watershed, small enough that both methods build, so the comparison isolates the delineation engine; then by testing whether the conclusion holds at whole-HUC-8 scale on the lake-dense Peace River basin.

What each method is, and what we expect

NHDPlus HR is the surveyed 1:24,000 stream network and Watershed Boundary Dataset divides, hydro-enforced into the DEM, so its channel network and contributing area are fixed by the mapped hydrography. Threshold TauDEM instead reconstructs the network from the bare DEM, cutting channels wherever accumulated upslope area exceeds a cell threshold the analyst chooses. Three testable expectations follow:

1. Determinism. NHDPlus HR yields one contributing area, fixed by the hydrography; TauDEM’s depends on the threshold and the DEM extent, so it is tunable and non-unique.
2. Per-basin tuning. On a small basin both should build, but TauDEM should need hand-tuning (threshold plus lake method) to reproduce the NHDPlus subbasin and landscape-unit structure and to wire the lakes.
3. Scaling. On a large, lake-dense basin, TauDEM’s reliance on tuning and its need to rebuild lake topology from the DEM should make an unattended, lake-faithful build hard or impossible.

A controlled, single-variable benchmark

Every model routes the same 30 m DEM on the same grid and coordinate system and inherits the same NHD-derived lake polygons, so only the delineation engine and its settings change. We build the small Oklawaha S · HUC-12 030801020804 (VPUID 0308) watershed with NHDPlus HR and with threshold TauDEM across DEM extents (square box versus basin-clip), a range of stream/channel thresholds, and both QSWAT+ lake-integration methods, then read every metric — subbasins, landscape units, channels, outlet drainage area, lakes wired, and whether the model builds at all — directly from the executable SWAT+ project. Gage assignment is cross-validated by ranking every channel against the observed record rather than trusting a single nearest-point pick. The same recipe is then scaled to the whole Peace HUC-8.

• DEM: Every model — NHDPlus HR and all TauDEM variants — routes the same 30.0 m DEM (identical grid and CRS, read live from each model's Watershed/Rasters/DEM/dem.tif). The 250 m figure on the TauDEM rows is the clip-buffer distance around the basin polygon, not the DEM resolution.
• Area: max(AreaC)/100 over rivs1.shp (hectares → km²), cross-checked against chandeg.con.
• Lake wiring: A lake is 'wired' only if it appears as a reservoir object in reservoir.con / hydrology.res / reservoir.res.
• Delineation: Threshold TauDEM uses stream 5000 / channel 1000 cells (force_taudem_only); DEM extent is a square bbox or the dissolved basin polygon with a 250 m clip buffer (SWATGENX_CLIP_DEM_TO_BOUNDARY).
• Lake methods: QSWAT+ addHUCLakes (subtract lakes from subbasins) and splitChannelsByLakes (re-split channels, rerun TauDEM); both attempted, with and without NHD stream-burn.

Every built model, side by side

Every value is read from the executable SWAT+ model (live SWAT+ TxtInOut + Watershed/Shapes artifacts); all rows share the same 30 m DEM, so the columns are the settings (DEM extent, lakes) and the resulting network. The default fine TauDEM threshold over-fragments the basin, but a coarse stream threshold reproduces the NHDPlus channel and subbasin counts — those are the rows to read against the NHDPlus reference. The last row additionally wires all four lakes (splitChannelsByLakes, fine threshold).

Contributing area — DEM extent governs TauDEM

All models route the same 30 m DEM (identical grid and CRS) — only the delineation engine and the DEM extent differ. NHDPlus HR delineation lands on the basin's drainage area (52.61 km²). Threshold TauDEM has no fixed extent: a square DEM over-delineates, a tight basin-clip under-delineates, and stream-burning the NHD network into the DEM does not close the gap — DEM extent, not resolution or the channel network, controls the contributing area.

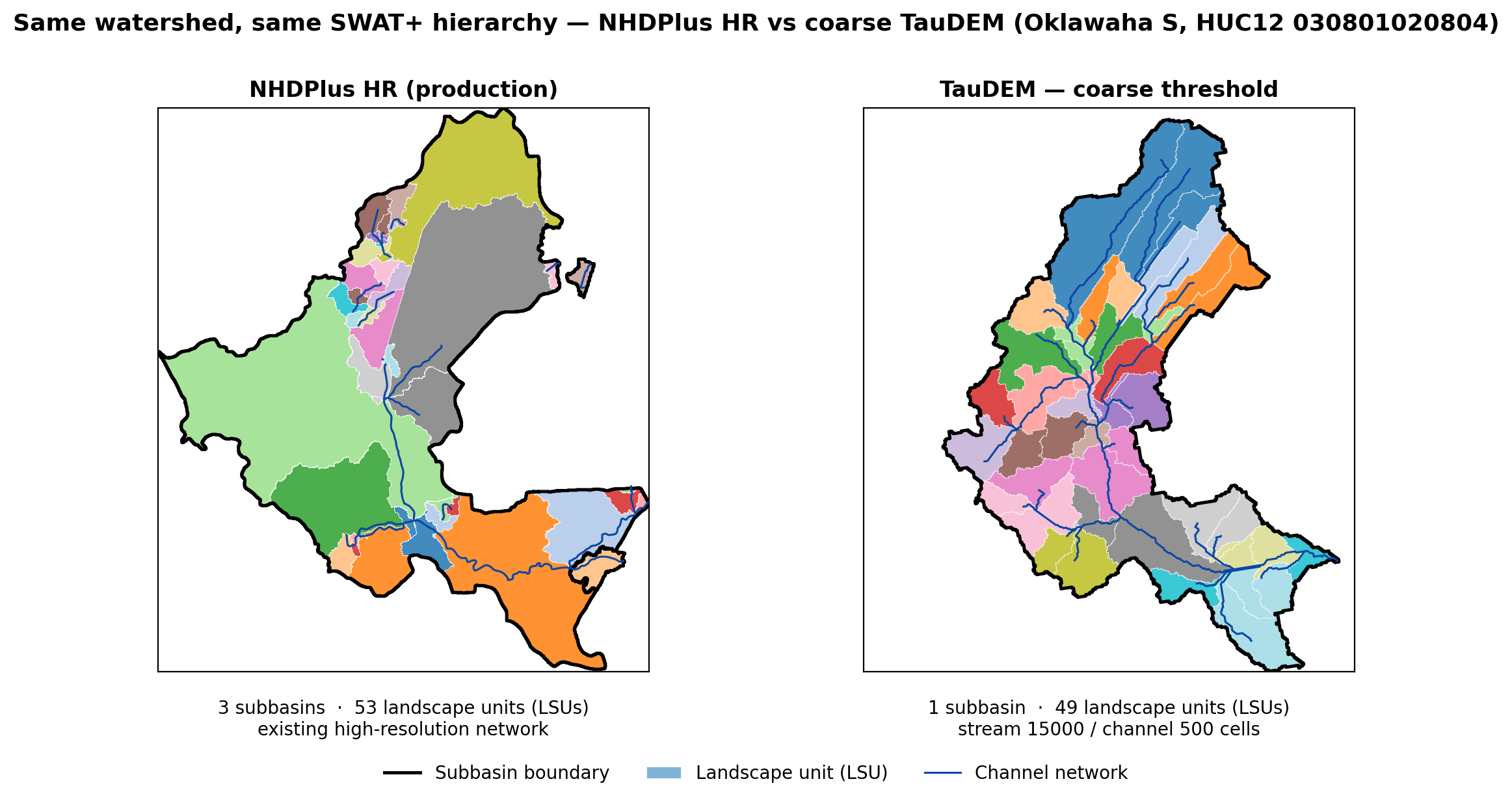

Subbasins and landscape units — the same SWAT+ structure

SWAT+ divides a watershed into subbasins, each subdivided into landscape units (LSUs)at catchment scale, then HRUs. NHDPlus HR keeps a HUC12 as a few large subbasins carrying many catchment LSUs (here 3 subbasins, 53 LSUs). The default TauDEM threshold instead fragments the basin into many small subbasins. But this is a knob, not a limitation: a coarse stream threshold (one subbasin for the whole HUC12) with a moderate channel threshold reproduces the NHDPlus count — 1 subbasin holding 49 LSUs. So SWAT+ built from NHDPlus HR preserves the WBD structure, and TauDEM can match that count when the thresholds are chosen to. The two are not identical, though: NHDPlus HR cuts its landscape units along the surveyed NHD catchment boundaries (the elementary catchment units delivered with the hydrography), while TauDEM carves its units straight from the DEM by flow accumulation. The same one-subbasin/49-LSU structure therefore resolves into a different set of unit shapes — as the side-by-side panels below make clear.

Lake integration — method × threshold, not impossible

NHDPlus HR carries lake–channel topology in the hydrography, so the 4 lakes become reservoir objects directly. Threshold-TauDEM rebuilds the channel network from the DEM, so the default addHUCLakes fails at every threshold — the NHD lake-outlet node IDs have no counterpart in the rebuilt network. But splitChannelsByLakes, which re-cuts channels geometrically at the lake boundaries (minting fresh outlet nodes), wires all 4 lakes as reservoirs at a fine threshold (500/100) and runs SWAT+ successfully. So TauDEM can route lakes — it needs the right method and a dense enough network.

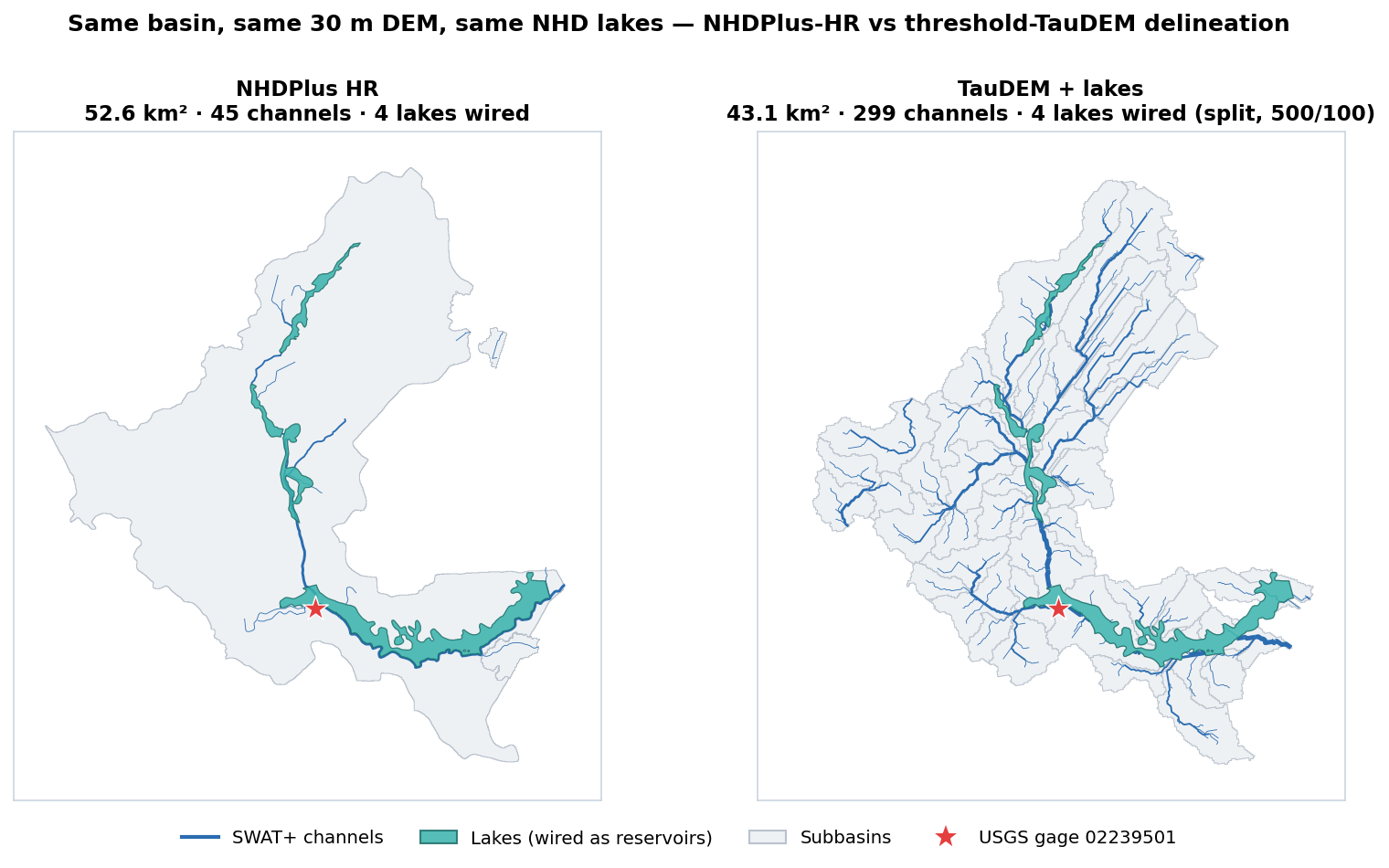

What the two networks look like

A visual reference for the two engines on the same basin and 30 m DEM. The threshold-TauDEM panel shown here uses a fine threshold (299 channels) so the lakes can be wired by splitChannelsByLakes; the coarse-threshold settings in the table above instead match NHDPlus’s 45-channel network. Either way, both wire the four lakes as reservoirs.

Scaling up: a large, lake-dense basin (Peace HUC8)

The same-basin results above isolate the engine on a small watershed where both methods build. At scale the decisive difference is cost and routing fidelity, not feasibility. On the Peace River HUC8 (6,030 km², 63 HUC12 subwatersheds, 347 mapped lakes), the NHDPlus HR–conditioned delineation builds cleanly in a single unattended run — on the order of 1–2 hours — inheriting all 347 waterbodies straight from the surveyed hydrography, with no per-basin tuning.

Threshold TauDEM can reach a comparable model on this basin too — but only by trial and error over the stream and channel thresholds and the DEM resolution, where each delineation attempt is itself a multi-hour build (the fine-network attempt alone ran 8+ hours before stalling in the lake-topology merge). The buildable recipe we converged on clips the DEM to the basin, burns only the major rivers, and omits the lakes; with further tuning the lakes can be wired back, but that does not change the underlying issue. What a DEM threshold produces is an arbitrary delineation of the surface-water network — channels and divides placed by flow accumulation — not the true routing path, and here it also over-segments the basin roughly 14× (2,304 vs 162 subbasins).

At this scale, calibrating to a single gage where the drainage area matches, an arbitrary internal routing is often tolerable. But delineation accuracy is exactly what local-scale decisions and policy implementation depend on — where water actually routes, which channel carries it, which catchment drains where. Building SWAT+ from the surveyed hydrography removes that routing doubt to a great degree, in one deterministic pass with the lakes intact. (Small-basin comparison above is unaffected.)

The Peace HUC-8 result, in numbers (347 lakes, 6,030 km²)

At whole-HUC-8 scale the question is cost and routing fidelity, not feasibility: NHDPlus HR builds the lake-dense Peace basin unattended in a single ~1–2 hour run with all 347 waterbodies, while threshold TauDEM reaches a runnable model only after a multi-hour, trial-and-error search over thresholds and DEM resolution — and the recipe we converged on trades the lakes and a faithful routing path for an arbitrary, ~14× over-segmented DEM delineation.

• NHDPlus HR builds Peace cleanly and unattended in a single deterministic run (~1–2 hours), inheriting all 347 mapped waterbodies as lake objects — no per-basin tuning.
• Threshold TauDEM can build this basin too, but only by trial and error: each delineation attempt is a multi-hour run (the fine-network attempt ran 8+ hours before stalling in the lake-topology merge), and reaching a buildable configuration meant searching across stream/channel thresholds and DEM resolution.
• The buildable recipe we converged on clips the DEM to the basin, burns only the surveyed StreamRiver flowlines, and omits the 347 lakes; further tuning could wire the lakes back, but the delineation it produces is DEM-derived and arbitrary, not the surveyed routing path.
• Clipping the DEM brought total contributing area to within 2% of NHDPlus (5,853 vs 5,982 km²) by suppressing the cross-divide over-capture an unclipped threshold delineation produces — so the drainage area matches even where the internal routing does not.
• Why it matters: at single-gage calibration a matching drainage area can be enough, but local-scale decisions and policy implementation depend on where water actually routes; the surveyed hydrography removes that routing doubt, the DEM-threshold search does not.

Only-buildable TauDEM recipe: coarse auto-threshold + basin-clipped 250 m DEM + selective major-river burn + lakes omitted (lakes wireable with further tuning). Basin: Peace River · HUC-8 03100101 (VPUID 0310).

USGS gage → channel assignment (cross-validated)

Rather than trust the single nearest-point pick, we printed every channel and ranked them against observed daily flow at gage 02239501 by monthly timing correlation. For each delineation we show the assigned channel, the basin outlet (largest drainage area), and the best-correlated channel. The assigned channel is a poor pick in both models; the outlet is the right channel by drainage area.

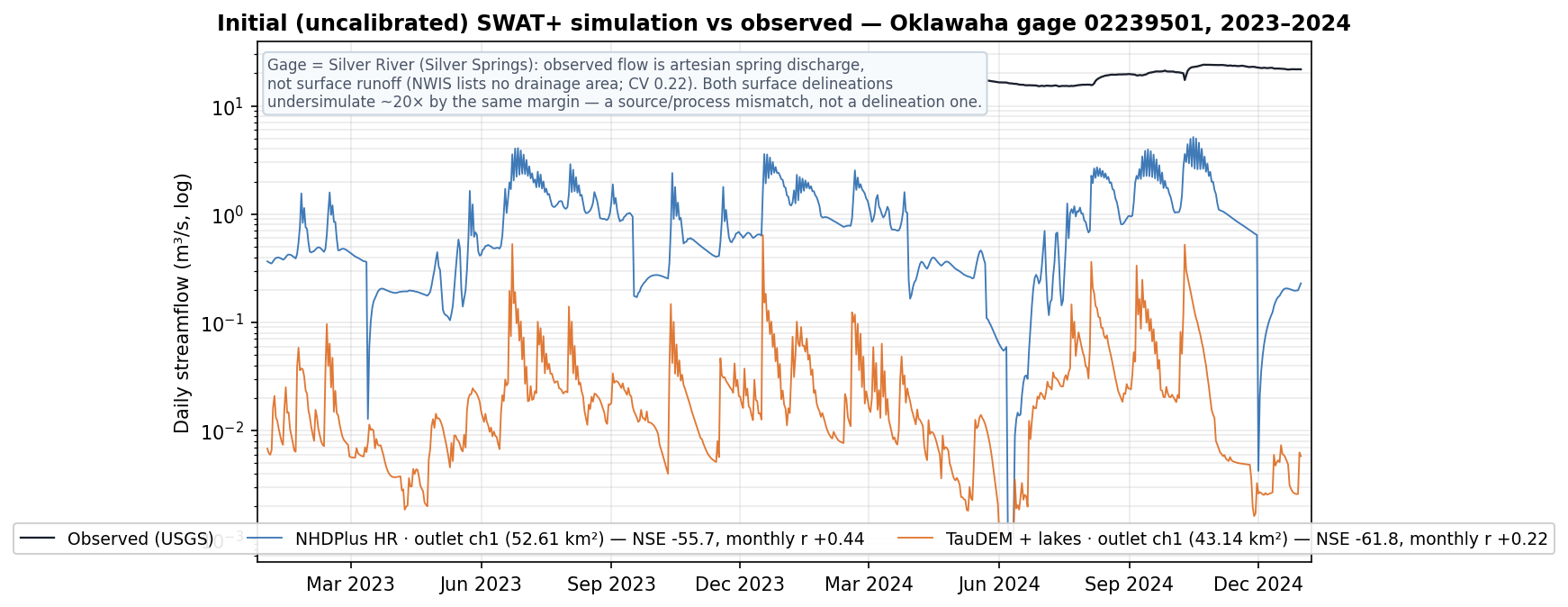

Initial (uncalibrated) streamflow vs observed

Both models run with default parameters over 2023–2024 at each model's outlet channel. Observed mean is 18.32 m³/s, yet both models simulate near-zero flow — and by the same margin, so initial streamflow does not separate the delineations here. The reason is not delineation: it's the gage. (Log axis.)

What the comparison establishes

NHDPlus HR delineates from the true surveyed hydrography in a single deterministic run; threshold TauDEM only reconstructs it from the DEM, needs trial-and-error threshold tuning to come close, and its contributing area shifts with an arbitrary DEM extent. Even where fine-threshold tuning lets TauDEM wire the four lakes, that is the ceiling of what tuning buys — not parity with a surveyed network.

Conditioning on NHDPlus HR is not a convenience: it is the difference between modeling the real stream network and reconstructing a plausible one. NHDPlus HR delineates the basin in a single deterministic pass with no tuning, wires the lakes and assigns gages from the surveyed topology, and scales to a large, lake-dense basin unattended. Threshold TauDEM can approximate the same network from the DEM — and with enough trial and error over the thresholds and DEM resolution it will eventually build even a large, lake-dense basin with its lakes — but every attempt is a multi-hour delineation, and what it converges on is an arbitrary DEM-derived routing rather than the surveyed path. Where models drive single-gage calibration and the drainage area matches, that arbitrariness is often tolerable; where they inform local-scale decisions and policy, the placement of channels and divides is the thing that matters, and the surveyed route removes that doubt by default. For an automated generator meant to run across thousands of basins, that is the operative advantage — reproducible and routing-faithful, without a per-basin search.

NHD outlet area

52.61 km²

NHD lakes wired

4

TauDEM area range

42.76–67.58 km²

TauDEM lakes wired

4 ✓

Whether the resulting network is accurate enough for the hydrology, and whether the approach scales, are quantified on the drainage-area audit, runtime benchmark, and USGS station-assignment pages.
